APPROVED for E-core Fire Doors

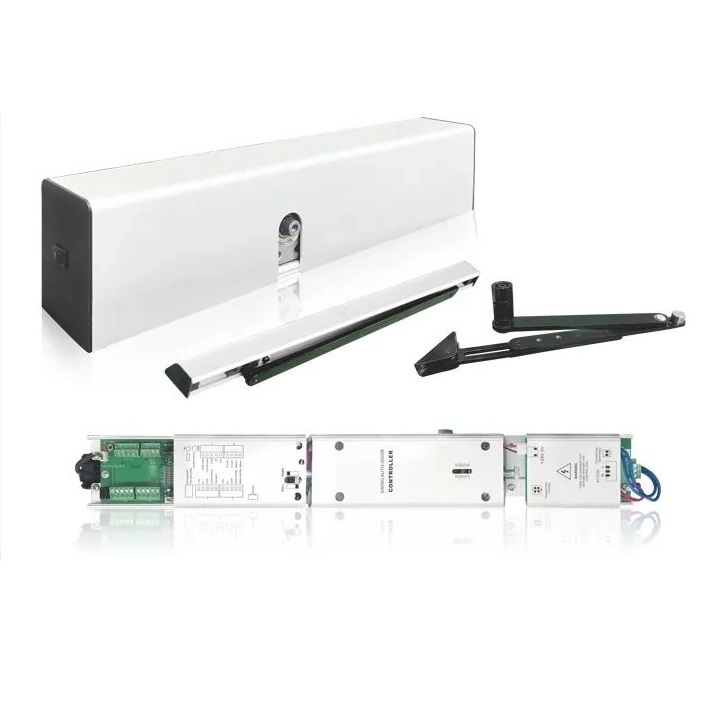

This heavy duty door operator, is perfect for any high use commercial building where you are looking for a way to manage swing doors, with Spring return feature.
It is a highly capable unit that can be managed by sensors, press buttons, card readers and infrared hand sensors.
Our model SW165 offers the same specifications and features without the Spring return function
Single Leaf Door
Standard arm
Pushing Left/Right
Single Leaf door
Slide arm
Left/Right Pull
Two leaf door
Two way traffic flow
Two alternate/independent drives
Two leaf door
Electrically linked
Standard arm push/Slide arm pull
Interlock door operation
Electrically connected doors
Configuration
Single Leaf 600-1200mm
Max weight 170kg
Opening
Open time 0.5-30Sec
Opening time 3-7Sec
Opening time 3-7Sec
Open angle 80-100deg
Noise <55Db
Power
AC 110V-220V +/-10%
24V DC motor, 100W Max
Fire rating
Please call for fire rating details
SKU:13821061
| Door type | Suitable for hinged doors that swing, either inwards , outwards or both ways |
|---|---|
| Actuator | Automatic actuator that is electrically assisted door closer or opener |
| Size | 200 kg – up to 200kg weight or less |
