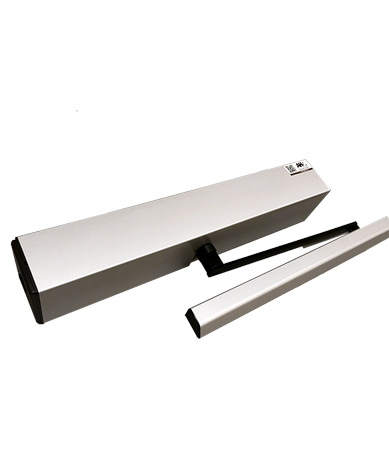

A Series 100SW Automatic Door Operator



This operator provides easy access for people with disabilities and has multiple activation options

  • Easy plug in power adaptors
  • Perfect for residential homes or light commercial buildings
  • Activate with Proximity Tag, Remote, PIN keypad, sensor or touch free access buttons
  • Ideal for people with limited mobility,
  • for doors up to 100kg
SKU 13821001 Categories , , , ,

Key Features

Door Configuration
Single leaf

Door leaf weight limit
1x100kgs

Clean open width
1200mm

Max Opening angle
120 degrees

Door width
Min 660mm, Max 1200mm

Power supply
AC 220V±10%,  50-60Hz

Power consumption
50W

Opening speed
250-450mm/s (adjustable)

Closing speed
250-450mm/s (adjustable)

Hold open time
3-7S (adjustable)

Manual force
<30N

Sliding noise
≤ 55Db

Dimension
540mm (l) x 82mm (w) x 95mm (h)

Environment temperature
-20ºC~+50ºC
SKU:13821001
