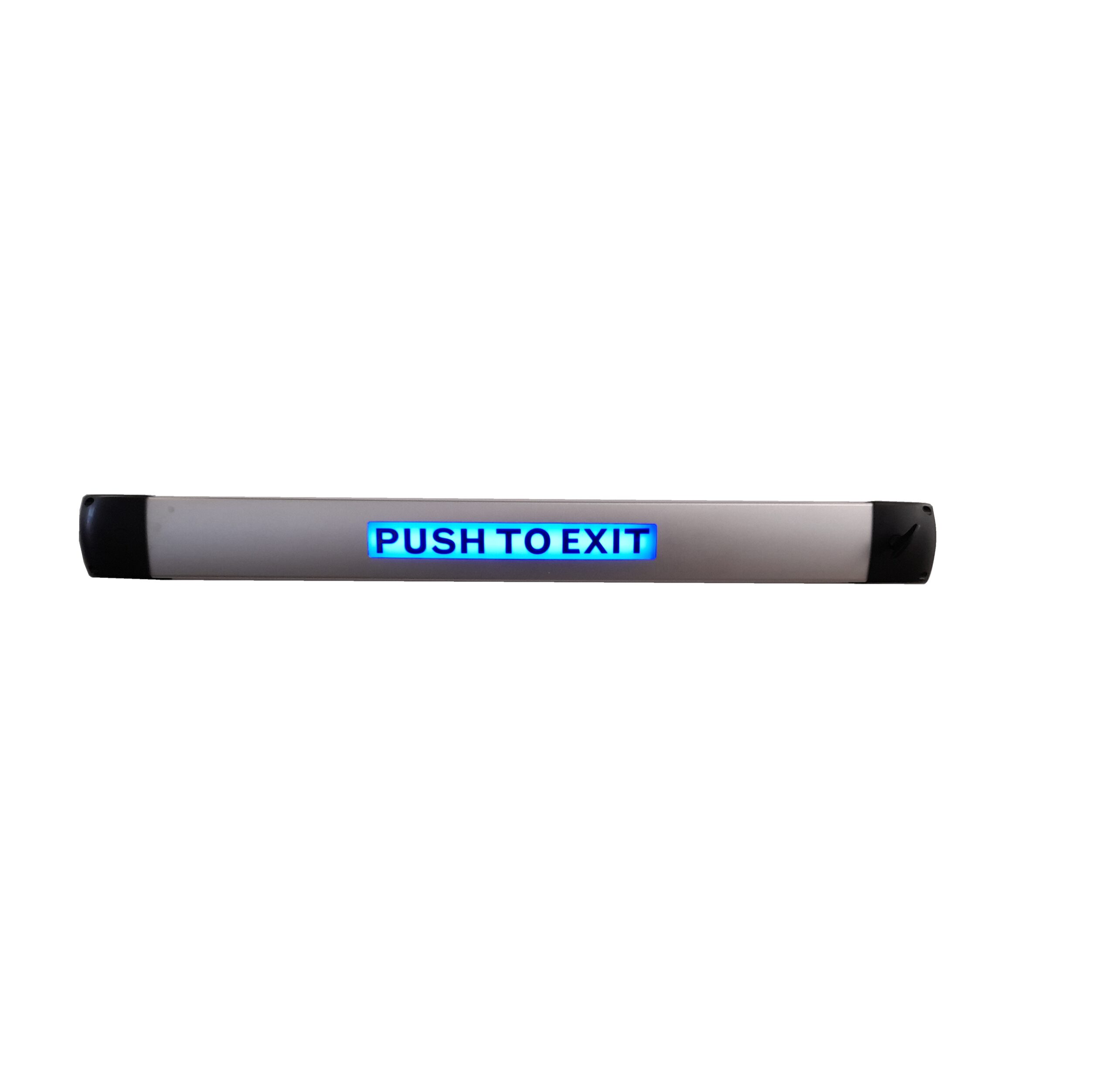

The MPB-185B is a mechanical Crash Bar/Panic Bar that has no mechanical locking components rather two sets of individual switches that can be use to control electronic locking devices.
The MPB-185B also come with an option timer and sounder. The timer does not perform unlock delay but allows control on how long the door will stay unlocked for.
It is also supplied with an unlock key allowing the bar to be held in the unlock position.
Power Input DC 12V/ DC 24V
Current Consumption 150mA@12VDC / 75mA@24VDC
Contact load ≦5A@230VAC
Output Status Trigger (0.5-60 sec.)/
Toggle (Use of a key to control)
Indicator Color Built-in Blue / Green Bi colour
( 210L 25W mm )
Buzzer Decibel Maximun 92 Decibel (Adjustable)
Suitable Door Leaf Width ＞60CM
Contact life ≧100,000 times
Mechanical lock Sustain permanent output state
Operation Temperature Approximately 0℃~70℃
Warranty period 1 year
Weight 1900g
SKU:15822185
