THIS IS A FACE FIX ONLY LOCK
To mount in a traditional manner use SX-LS-M70101A L Bracket Kit.
The SX EX ELECTROMAGNETIC LOCK, also known as the SX EX MAGLOCK, is a member of our unique SX product family, which has been specifically designed for use in hazardous (Ex) environments. The unique, certified device works with both our door controller and access products or with third party ACU systems to provide a highly effective solution for Door status monitoring / access control in Ex classified hazardous areas Zones 1, 2, 21 & 22.
APPROVALS
•
ATEX
ExVeritas 17ATEX0289X
•
IECEx
EXV 17.0018X Issue No.2
DIMENSIONS & WEIGHT
Electromagnetic Lock
•
Dimensions: 40 x 62 x 265 (HxWxD)
•
Weight Approx. 5Kg
Magnet Armature
•
Dimensions 18 x 62 x 265 (HxWxD)
•
Weight Approx. 2Kg
ENCLOSURE MATERIAL
•
Stainless Steel 316L

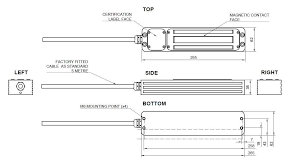

MOUNTING DETAIL
Electromagnetic Lock
•
M6 Mounting Point (x4)
•
M4 External Earth Point (x1)
Magnet Armature
•
M6 Mounting Points (x4)
(External Earth Point fitted with M4 Bolt, M4 external
serrated lock washer).
IDEAL MAXIMUM HOLDING FORCE
•
Approx. ~500 kgf. (5000N)
•
Approx. ~1200 lbs.
(Magnet holding force is reduced by increasing AC
Ripple in DC
supply 0…max. 25 %. Results based on ideal factory environment,
real world results may vary dependent on mounting).
IP PROTECTION
•
IP 67
1 Meter for 30 Minutes in fresh water.
WARRANTY
•
Factory Warranty
2 years
(Warranty
begins at the point of invoice)
SWITCHING ELECTRICAL CHARACTERISTICS
•
SPCO CONTACT
Max. 0.5A
•
SPCO CONTACT
Max. 10W
(Please refer to product certification label)
OPERATION LIFE CYCLES MTBF
•
>1 Million Operations (Mechanical)
•
10
6 Operations (Electrical)
SKU:15472111
